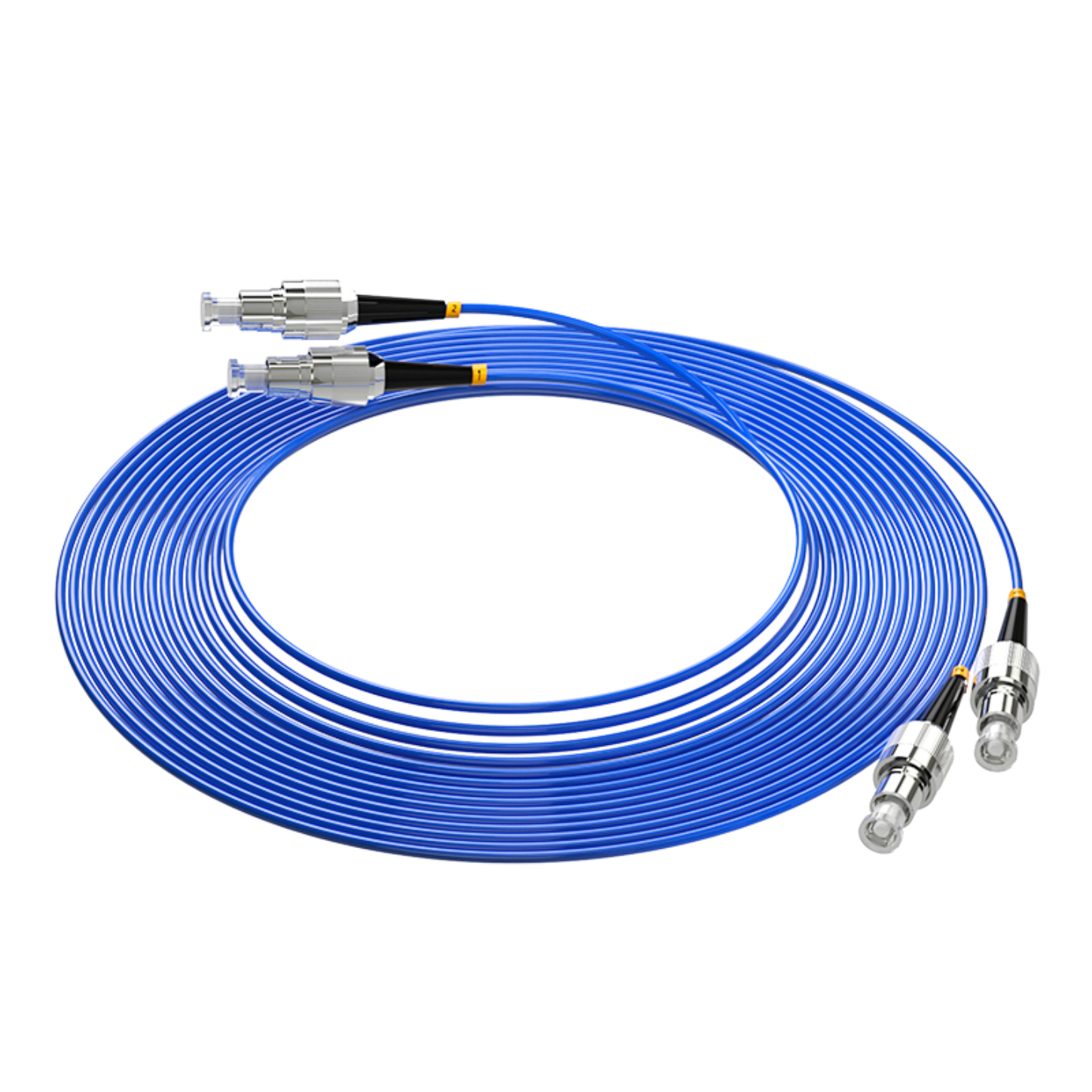

Duplex Jumper OM1 62.5/125μM Fiber Patch Cord FC To FC LSZH

Name: Duplex Jumper OM1 625125μM Fiber Patch Cord FC To FC LSZH
Brand: Zion communication OR OEM
Price: 1 USD

Wholesale Duplex Jumper OM1 62.5/125μM Fiber Patch Cord FC To FC LSZH from china suppliers

Brand Name : Zion communication OR OEM

Model Number : FC to FC duplex

Certification : ISO, CE, RoHS, UL

Place of Origin : CHINA

MOQ : 1,000 PCS

Payment Terms : T/T, L/C

Supply Ability : 30,000 PCS / Month

Delivery Time : Normally 10 workingdays

Packaging Details : 1 PC/Plastic Bag, PCS/Carton

Fiber Unit : OM1 , 62.5/125

Tight Buffer Fiber : 900/600μm tight buffer

Connector : SC, LC, ST, FC, MU and E2000

Jacket : LSZH

Color : Orange or Blue

Package : 1 PC/Plastic Bag, PCS/Carton

Contact Now

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

62.5/125 (OM1) Optical Fibre Patch Cords
Features:
✔ SC, LC, ST, FC, MU and E2000 connectors ✔ Low smoke zero halogen (LSZH) jacket in orange colour ✔ 900μm/600μm tight buffer ✔ OM1 fibre conforms to TIA/EIA 492AAAA, IEC60793-2-10 ✔ Simplex and duplex assemblies ✔ Duplex assemblies available with clips (SC and LC) ✔ Different connector performance range for specific application ✔ Armoured option also available
Application:
✔ Gigabit Ethernet in high speed LAN networks over an indicative 275m link ength at 850 nm (SX) wavelength ✔ Legacy networks including Ethernet, Fast Ethernet and FDDI ✔ Data centres ✔ Premises cabling in data networks including backbone, riser and horizontal ✔ Supports video, data and voice services
Connector Specification:
Optical Performance			Singlemode	Conformance
IL Max/Master (Acceptance)			0.25 dB	IEC 61300-3-4
Ave/Master			0.15 dB	IEC 61300-3-4
Ave/Random			0.20 dB	IEC 61300-3-34

Fibre Specification:
Characteristics
Attenuation (dB) / km			3.00 @ 850nm / 0.80 @ 1300nm
Bandwidth OFL (MHz x km)			200 @ 850nm / 500 @ 1300nm

Cable Specification:
Characteristics			Simplex	Duplex
Cable Material			LSZH	LSZH
Strength Member			Aramid	Aramid
Crush (N)			1000	1000
Operating Temperature (˚C)			-20 to 60	-20 to 60
Fire Specification			IEC 60332-1

Part Number Generator:
FC FC UPC SX OS1 1 1 YE 0 ① ② ③ ④ ⑤ ⑥⑦ ⑧ ⑨
Connector End A	Connector End B	Polish Type	Cable Type	Mode	Cable Diameter	Jacket Type	Jacket Color	Length
SC LC ST FC D4 E2000 MU	SC LC ST FC D4 E2000 MU	UPC APC	SX=Simplex DX=Duplex A=Armoured W=Water-proff B=Break-out R=Rbbon B=Bundle	OS1 OS2 OM1 OM2 OM3 OM4 OM5	1=0.9mm 2=2.0mm 3=3.0mm	1=PVC 2=LSZH 3=OFNP 4=OFNR 5=PE 6=TPU	YE=Yellow BL=Blue GN=Green OR=Orange GY=Grey PU=Purple AQ=Aqua	0=0.5m 1=1m 2=2m 3=3m ····


①	②	③	④	⑤	⑥	⑦	⑧	⑨
