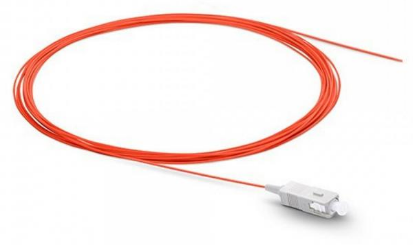

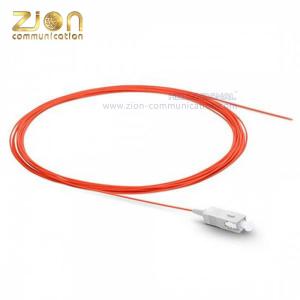

FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m

Brand Name : Zion communication OR OEM

Model Number : SC APC Simplex OM1

Certification : ISO, CE, RoHS, UL

Place of Origin : CHINA

MOQ : 1,000 PCS

Payment Terms : T/T, L/C

Supply Ability : 30,000 PCS / Month

Delivery Time : Normally 25 workingdays

Packaging Details : 1 PC/Plastic Bag, PCS/Carton

Fiber Unit : G.652D or G.657A

Tight Buffer Fiber : Tight Buffer Fiber

Jacket : PVC or LSZH

Color : Orange

Package : 1 PC/Plastic Bag, PCS/Carton

Contact Now

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m

SC APC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT

SC APC Simplex
OM1 Multimode PVC 0.9mm -2m(6ft) FOPT
22F1411-2
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m
Product Specification
Fiber Optic Cable
Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core
to serve as peripheral strength member.
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. other lengths on request
Product Specification
Connector
Connector Type LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m

 SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m
Product Specification
Parameter SC APC
OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 850-1300
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensil Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85

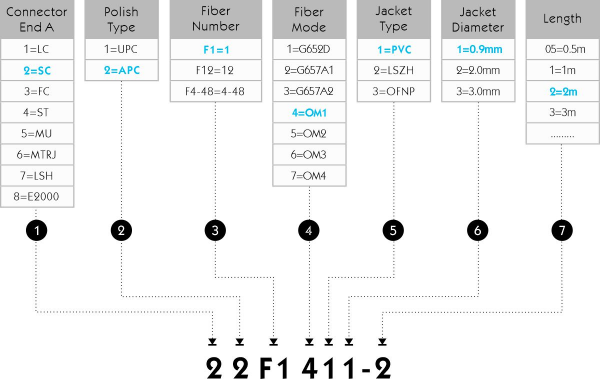

Zion Code Description
22F1411-2 SC APC Simplex
OM1 Multimode PVC 0.9mm -2m(6ft) FOPT

FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m
OEM/ODM service for you
ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available

FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m LC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 11F1111-2(7242207)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m LC UPC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT 11F1411-2(7242208)OM1 G.652.D/G.657.A1/G.657.A2 , ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m LC APC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 12F1111-2(7242209)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m LC APC Simplex OM1 Multimode PVC 0.9mm-2m(6ft) FOPT 12F1411-2(7242210)OM1 G.652.D/G.657.A1/G.657.A2 , ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2(7242211)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m SC UPC Simplex OM1 Multimode PVC 0.9mm-2m(6ft) FOPT 21F1411-2(7242212)OM1 G.652.D/G.657.A1/G.657.A2 , ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m SC APC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT 22F1111-2(7242213)SM(OS2)G.652.D/G.657.A1/G.657.A2 ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m SC APC Simplex OM1 Multimode PVC 0.9mm-2m(6ft) FOPT 22F1411-2(7242214)OM1 G.652.D/G.657.A1/G.657.A2 ,
FOPT SC APC Simplex Orange OM1 Multimode PVC 0.9mm 2m ST UPC Simplex OM1 Multimode PVC 0.9mm-2m(6ft) FOPT 41F1411-2(7242215)OM1 G.652.D/G.657.A1/G.657.A2 ,
