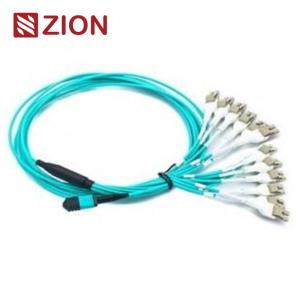

24 Fibers MPO to LC OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

Name: 24 Fibers MPO to LC OM3 Fiber Optic MPOLC 20mm Straight harness Cables
Brand: HELLOSIGNAL® OR OEM
Price: 1 USD

Brand Name : HELLOSIGNAL® OR OEM

Place of Origin : CHINA

MOQ : 50pcs

Payment Terms : T/T

Supply Ability : no limit

Delivery Time : Normally 25 days after received the deposit.

Packaging Details : 10 PC / Plastic Bag

Durability : <0.3dBtypical change, 200 matings

Interchangeability : ≤0.2dB

Insert-pull Test : 500times, IL＜0.5dB

Tensile strength : >70N

Operating Temperature (℃） : -40 to + 85°C

Contact Now

24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

24 Fibers MPO to LC OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

Zion Code and Description

Zion Code: ZCM11A57HAAX

Zion Description: 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

The MPO connector is a type of fiber connecter. MPO (Multi-Fiber Push On) is a multi-core fiber connecter type. The MPO high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.

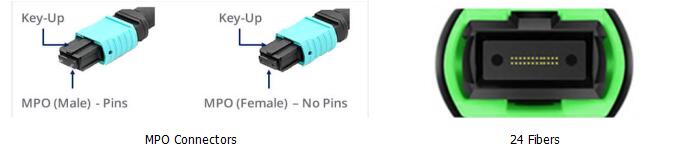

MPO connector types are distinguished according to the IEC 61754-7 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).

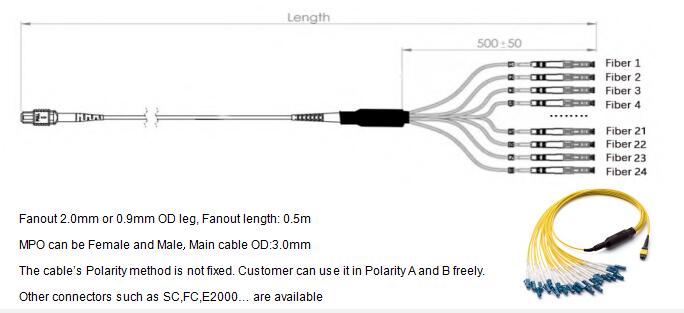

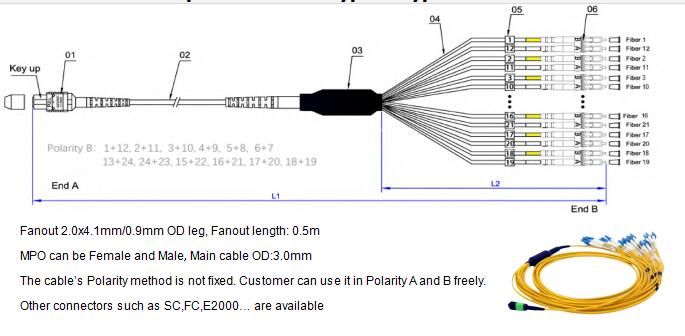

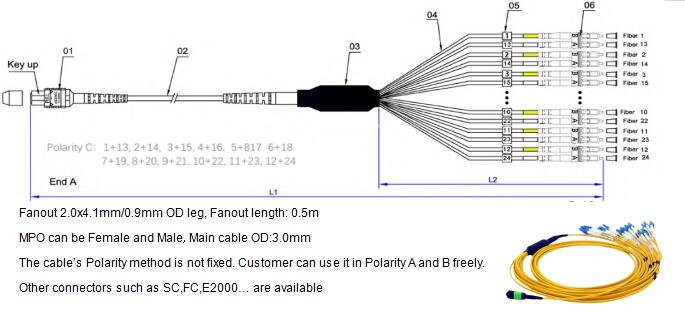

24 cores MPO Female to 12 LC Duplex( 12xLC uniboot;24 LC Simplex) 24F MPO- LC/SC/FC/ST Straight harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The
24pcs(12pcs for LC uniboot;24 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

24F MPO- LC/SC/FC/ST Straight harness Cables designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 24 Fiber harness cable is used for connecting (12) SFP+ into a MPO adapter panel and MPO trunk.

Connectors Industrial Standards

MPO Singlemode Reference: IEC 61754-7

MPO Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode Reference: IEC 61754-7

MPO Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

Other connectors’ Industrial Standard

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc
E2000: IEC61754-15

Available for

G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

Optical Specifications

Insertion Loss (MPO) (IEC 61300-3-34) Single mode (APC 8-degree polished): Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (MPO) (IEC 61300-3-34) Multimode (PC Flat polish): Standard loss:≤0.6dB(max), ≤0.50(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss (LC/SC/FC/ST)(IEC 61300-3-6) Single mode (APC 8-degree polished): ≤0.3dB
Insertion loss (LC/SC/FC/ST)(IEC 61300-3-6) Multimode (PC Flat polish): ≤0.3dB
Durability Singlemode (APC 8-degree polished): <0.3dB typical change (200 matings)
Tensile Strength Singlemode (APC 8-degree polished): >70N
Operating Temperature Singlemode (APC 8-degree polished): -40°C to +85°C

Features

Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

The merits of MTP/MPO Patch cable/trunk cable generally include

High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers
Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.

Application

24F MPO- LC/SC/FC/ST Straight harness Cables designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.This 24 Fiber harness cable is used for connecting (12) SFP+ into a MPO adapter panel and MPO trunk.

All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas.

The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
